Model Number : CY1B40H-200
Certification : CE
Place of Origin : CHINA
MOQ : 1 PCS
Price : Negotiation
Payment Terms : Western Union, T/T, L/C, Paypal, Credit card
Supply Ability : 1000 pieces per 10 working days
Delivery Time : 1-7 work days
Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement
Fluid : Air
Proof pressure : 1.05 MPa
Maximum operating pressure : 0.7 MPa
Minimum operating pressure : 0.18 MPa
Ambient and fluid temperature : -10 to 60°C
Piston speed : 50 to 400 mm/s
Cushion : Rubber bumper on both ends
Mounting orientation : Free
ø6, ø10, ø50, ø63
Specifications | |
Fluid | Air |
Proof pressure | 1.05 MPa |
Maximum operating pressure | 0.7 MPa |
Minimum operating pressure | 0.18 MPa |
Ambient and fluid temperature | –10 to 60°C |
Piston speed | 50 to 400 mm/s |
Cushion | Rubber bumper on both ends |
Lubrication | Non-lube |
Mounting orientation | Free |
Mounting nuts (2 pcs.) | Standard equipment (Accessory) |
Principal Parts Material | ||
Description | Material | Note |
Head cover | Aluminum alloy | Electroless nickel plated |
Cylinder tube | Stainless steel | |
Body | Aluminum alloy | Hard anodized |
Magnet | Rare earth |
Standara Stroke | ||
Bore size (mm) | Standara Stroke (mm) | Manufacturable maximum stroke (mm) |
6 | 50,100,150,200 | 300 |
10 | 50,100,150,200,250,300 | 500 |
50 | 100, 150, 200, 250, 300, 350, 400, 450,500, 600, 700, 800, 900, 1000 | 6000 |
63 |
Component Parts
No. | Description | Material | Note |
1 | Body | Aluminum alloy | Hard anodized |
2 | Head cover | Aluminum alloy | Electroless nickel plated |
3 | Cylinder tube | Stainless steel | |
4 | Piston | Aluminum alloy | Chromated |
5 | Shaft | Stainless steel | |
6 | Piston side yoke | Rolled steel | Zinc chromated |
7 | External slider side yoke | Rolled steel | Zinc chromated |
8 | Magnet A | Rare earth magnet | |
9 | Magnet B | Rare earth magnet | |
10 | Spacer | Rolled steel | Nickel plated |
11 | Bumper | Urethane rubber | |
12 | Piston nut | Carbon stee | Zinc chromated |
13 | Snap ring | Carbon tool steel | Nickel plated |
14 | Cylinder tube gasket | NBR | CY1B6: ø7 x ø5 x ø1 CY1B10: ø11 x ø9 x ø1 |
15 | Wear ring A | Special resin | The 6 mm bore cylinder is not available |
16 | Wear ring B | Special resin | |
17 | Piston seal | NBR | |
18 | Scraper | NBR | The 6 mm bore cylinder is not available. |
After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
![]() |

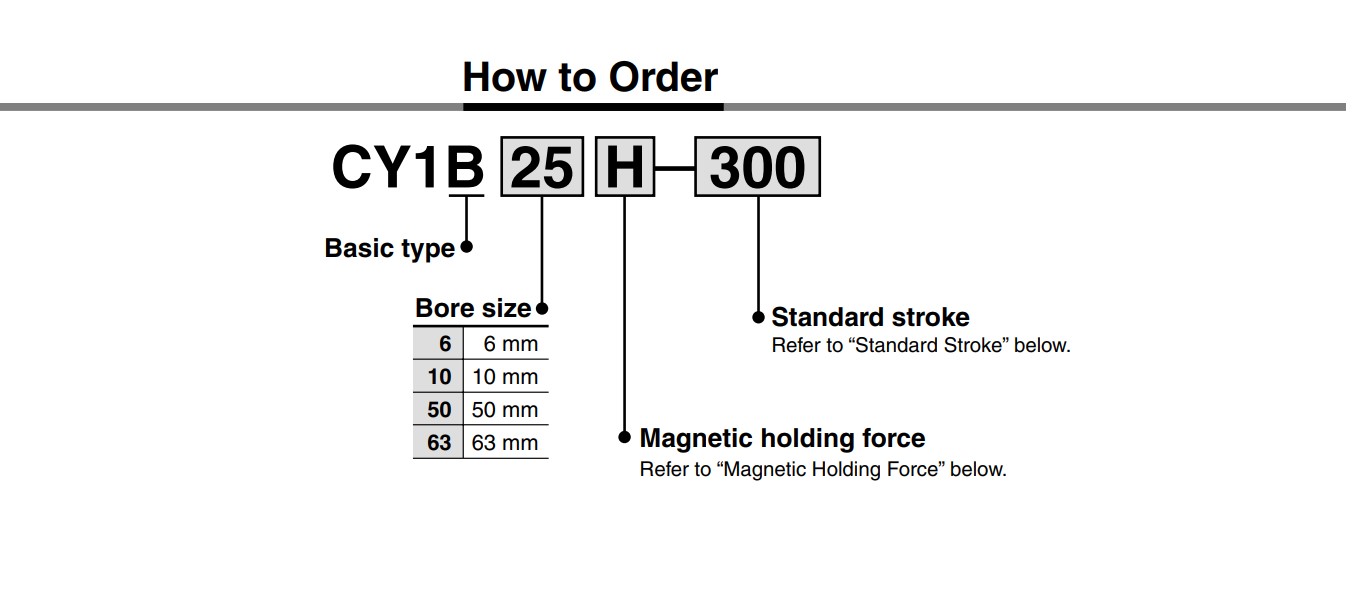

CY1B40H-200 Magnetically Coupled Rodless Cylinder SMC CY1B Series Pneumatic Images |
