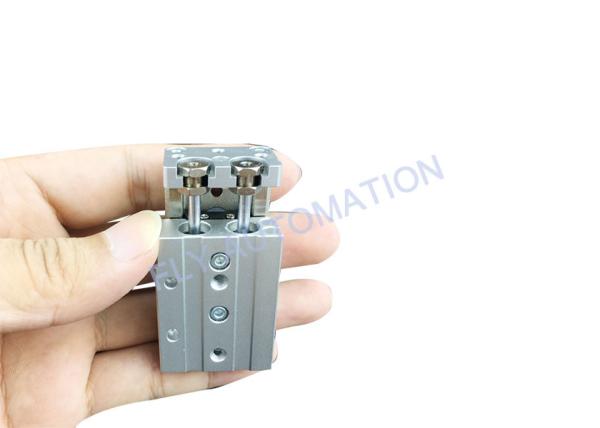

MXQ6-10 Air Slide Table Pneumatic Cylinder SMC MXQ Series Air Cylinder
Cylinder with built-in guide rail and table
Now with recirculating linear ball bearings for high rigidity and high precision
Air slide table for precise assembly applications
| Specifications |
| Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
| Fluid used | Air |
| Action | Double acting |
| Operating pressure | 0.15 to 0.7MPa |
| Proof pressure | 1.05 MPa |
| Ambient and fluid temperature | –10 to 60°C |
| Operating speed range | 50 to 500mm/s (Adjuster option/Metal stopper: 50 to 200mm/s) |
| Lubrication | Not required |
| Cushion | Rubber bumper (Standard, Adjuster option/Rubber stopper) Shock absorber (Adjuster option/Shock absorber) None (Adjuster option/Metal stopper) |
| Auto switch | Reed switch (2 wire, 3 wire) Solid state switch (2 wire, 3 wire) 2 colour indication solid state switch (2 wire, 3 wire) |
| Tolerance of stroke length | +1mm 0 |
| Standard Stroke | Standard stroke (mm) |
| Model | |
| MXQ 6 | 10, 20, 30, 40, 50, |
| MXQ 8 | 10, 20, 30, 40, 50, 75, |
| MXQ 12 | 10, 20, 30, 40, 50, 75, 100, |
| MXQ 16 | 10, 20, 30, 40, 50, 75, 100, 125 |
| MXQ 20 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
| MXQ 25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
Selection
Caution
1.Do not apply a load beyond the range of the operation limits. Select the model by using the maximum allowable load and allowable moment. Refer to pages p.2-190 for details. When an actuator is used beyond its operating limits, eccentric loads on the guide section will be in excess which results in shorter life span due to play or inaccuracy of guide section.
2. If a table is stopped at an intermediate position by an external stopper, avoid ejection. If ejection occurs, it causes damage. If a slide table is stopped at an intermediate position by an external stopper and then forwarded to the front, draw back the intermediate stopper after supplying pressure to allow the slide table to return to the back for an instant, then supply pressure to the opposite port to operate the slide table.
3.Do not use in circumstances that excessive, external forces or impacts would be applied. These conditions could lead to malfunctions
